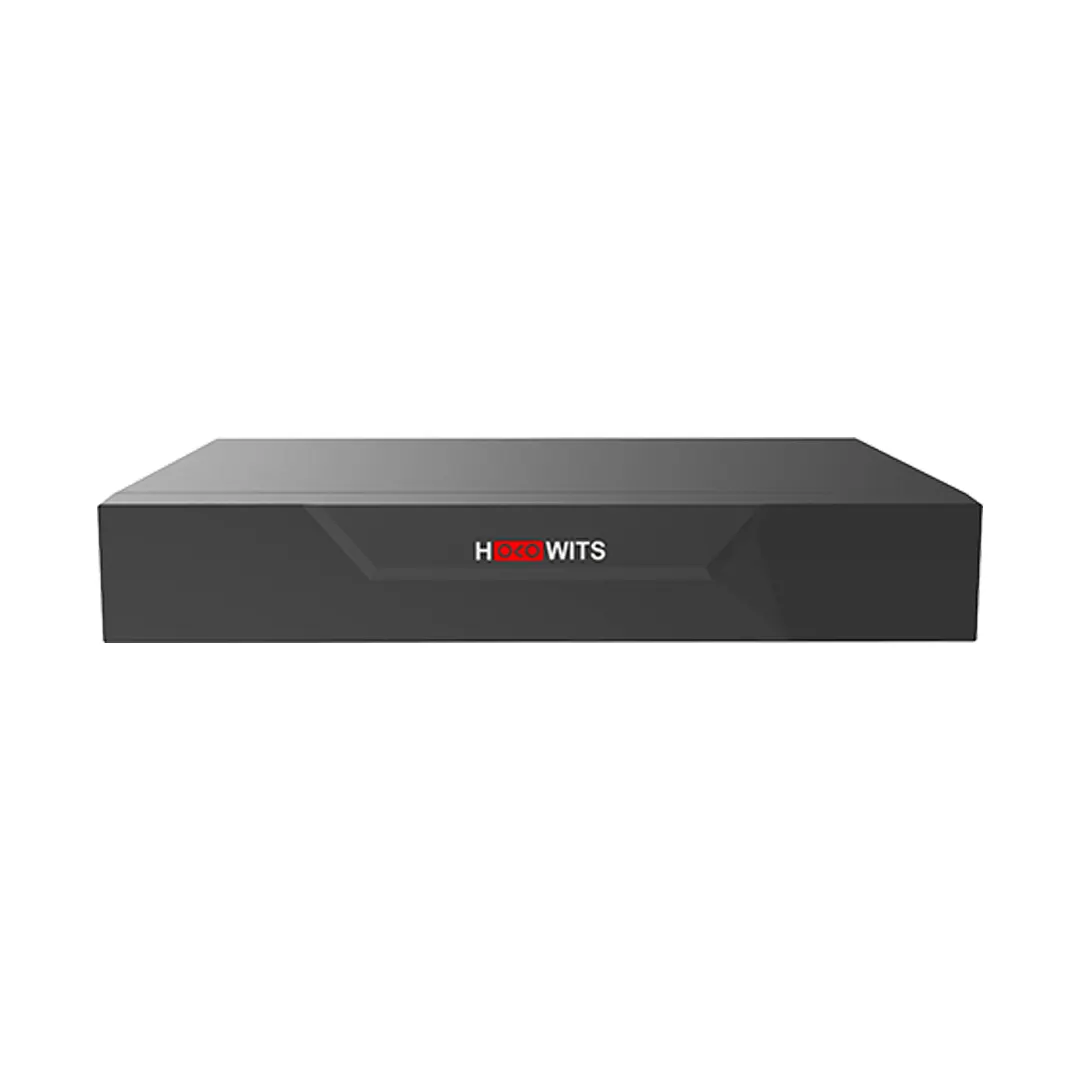

Holowits E700X 4 Channel 1-Disk Analog HD Video Recorder
Specification:
- 4CH
- Audio In&Out Port
- HDMI 4K Output
- Smart AI
- H.264&H.265
Deskripsi
Holowits E700X 4 Channel – Alat perekam video analog jenis XVR ini mampu menangani hingga empat saluran input analog melalui konektor BNC. Mendukung berbagai format HD seperti TVI/AHD/CVI hingga resolusi 5 megapiksel pada 20 fps, 4 megapiksel pada 30 fps, serta 1080p pada 30 fps. Selain itu, tersedia juga empat saluran input video IP hingga total bandwidth masuk 80 Mbps,
Technical Spec Holowits E700X 4 Channel
| Analog Video Input | 4 BNC port |
| Input Resolution | TVI/ AHD/CVI: 5MN@20fps/4MN@30fps/1080P@30fps |
| IP Video input | 4 channels, 80Mbps |
| Total Input | 4 Channels |
| Playback | 2CH (5MP-N coaxial input)/4CH (4MP-N coaxial input) 2CH (Coaxial or Hybrid mode) 4CH IP mode |
| Local decoding | 4*5 MP-N@12fps/4*4MP-N@15fps/4*1080P@14fps |
| Resolution | 5MN/4MN/1080P |
| Frame Rate | 5MP-N@12fps/4MP-N@15fps/1080P@25fps |
| Bit Rate | 128Kbps ~ 12288Kbps |
| Search | Time Slice / Time / Event / Tag Search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Operating temperature | -10°C to 55°C |
| Operating humidity | 10% to 90% (Non-Condensing) |
| Power consumption | ≤ 10W (Without Hard Disk) |
| Power supply | 12 V/2 A |
| Dimensions | 255mm*215mm*44mm (L*W*H) |
| Package Size | 280mm*260mm*50mm (L*W*H) |
| Weight | 689g |
Documentation
-
Datasheet
