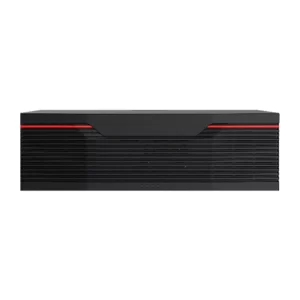

Holowits E700X 8 Channel Analog HD Video Recorder
Specification:
- 8CH
- Audio In&Out Port
- HDMI 4K Output
- Smart AI
- H.264&H.265
Deskripsi
Holowits E700X 8 Channel – Perangkat ini ideal untuk instalasi video pengawasan hybrid yang ingin memadukan kamera analog HD dengan kamera IP. Bandwidth IP yang besar (80 Mbps) mendukung kualitas gambar tinggi dengan jumlah kanal banyak, sementara 8 port analog memastikan kompatibilitas luas.
Technical Spec Holowits E700X 8 Channel
| Analog Video Input | 8 BNC port |
| Input Resolution | TVI/ AHD/CVI: 5MN@12fps/4MN@15fps/1080P@30fps |
| IP Video input | 8 channels, 80Mbps |
| Total Input | 8 channels(IP mode), 8 channels(Coaxial mode or Hybrid mode) |
| Playback | 8CH (5MP-N coaxial input) 8CH (Coaxial or Hybrid mode) 8CH IP mode |
| Local decoding | 4*5MN@5fps/8*D1@12fps |
| Resolution | 5MN/4MN/1080P/1080N |
| Frame Rate | Analog Channel: 5MN@5fps/4MN@7fps/1080P@7fps/1080N@14fps IP Channel: 5MP@25fps |
| Bit Rate | 128Kbps ~ 12288Kbps |
| Search | Time slice / time / event / tag search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Operating temperature | -10°C to 55°C |
| Operating humidity | 10% to 90% |
| Power consumption | ≤ 10 W (excluding hard disk) |
| Power supply | 12 V/2 A |
| Dimensions | 44 mm (H) x 215 mm (W) x 255mm (L) |
| Size | 280mm*260mm*50mm (L*W*H) |
| Weight | 699g |
Documentation
-
Datasheet
