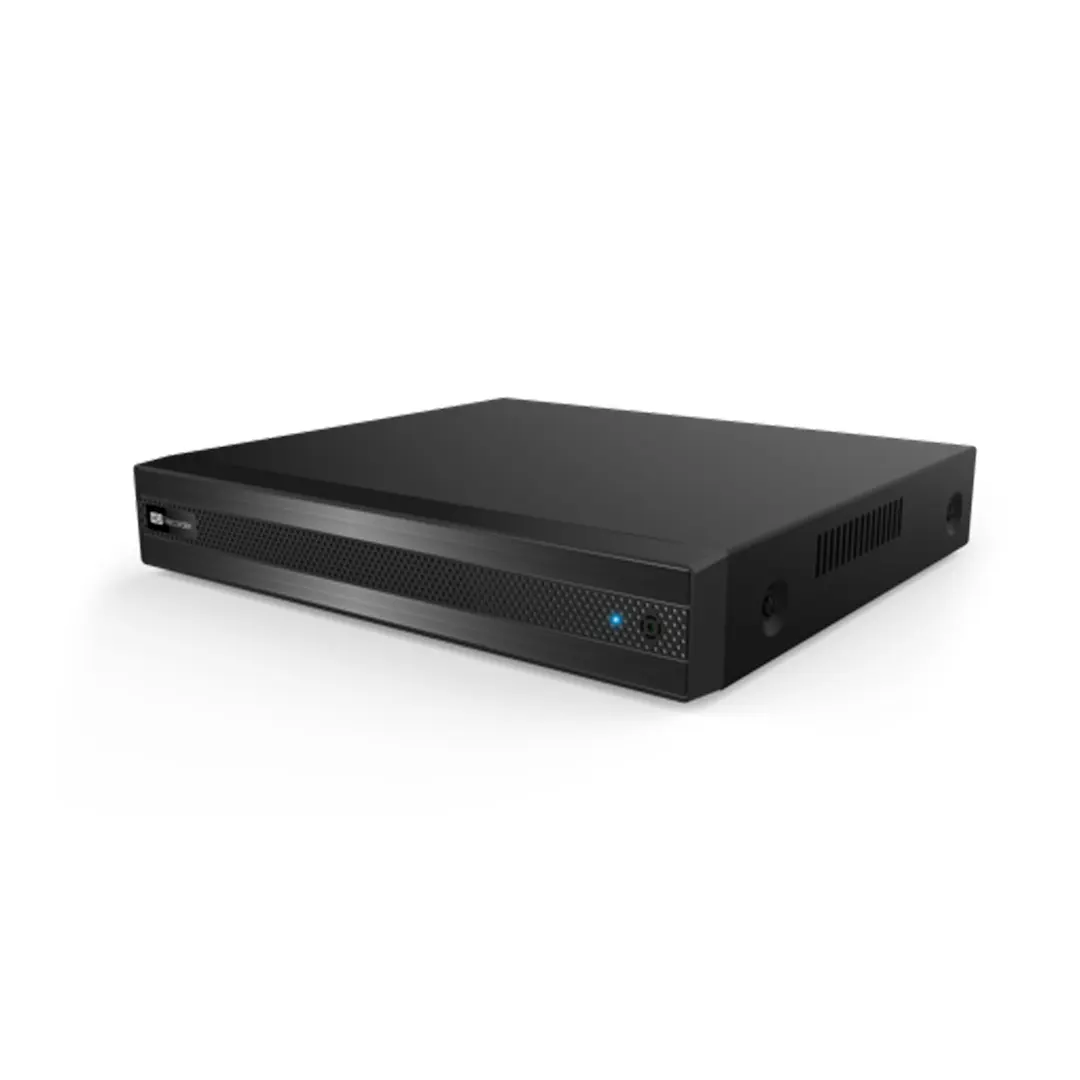

Holowits XVR620 4 Channel 1-Disk HD Video Recorder
Specification:
- 4 CH TVI / AHD/CVI 1080P/1080P Lite/720P/WD1 video input
- 4 CH DVR supports 2 CH 1080P / 960P /720P IP video input by default
- Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
- Multi-mode recording: manual / timed / motion
- Search: time slice, time, event, tag search
- Express and flexible backup via USB, network and so on
- Remote control via Web: preview, playback, backup, PTZ and configuration
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- 4CH analog video input can be switched to 4CH IP video input Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
- Playback : 4CH simultaneously playback
Deskripsi
Holowits XVR620 4 Channel – Perekam video digital XVR620 4‑ch untuk kamera analog, mendukung dekode lokal hingga 2 MP@30 fps, dan di lengkapi output HDMI/VGA Full HD.
Technical Spec Holowits XVR620 4 Channel
| OS System | Embedded Linux |
| Analog Video Input | 4 BNC port |
| Input platform | TVI/ AHD/CVI: 1080P/ 1080P Lite/ 720P/ 720P Lite/ WD1 |
| IP Video input | 2 channels, 10Mbps |
| Total Input | 6 channels |
| Playback | 4 channels 30Mbps |
| Local decoding | 4 channels Analog cameras |
| Local decoding | 2 channels 2MP@30fps |
| HDMI | One HDMI port, resolution: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| VGA | One VGA port; resolutions: 1920 × 1080 / 1280 × 1024 / 1024 × 768 |
| Preview | 1/4/6/9 panes |
| Disks | 1 |
| Disk port | SATA 2.0 |
| Disk type | Up to 8TB |
| Resolution | 1080P Lite/ 720P/ 720P Lite/ WD1 |
| Frame Rate | Analog Channel: |
| Frame Rate | 4CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) |
| Frame Rate | 8CH DVR: 1080P Lite/720P/WD1: 25fps (PAL)/30fps (NTSC) ( only CH 1 supports) 1080P Lite/720P/WD1: 12fps (PAL)/15fps (NTSC) ( other channels support) 720P Lite: 25fps(PAL) / 30fps (NTSC) |
| Frame Rate | IP Channel: 25fps(PAL) / 30fps (NTSC) |
| Bit Rate | 32Kbps ~ 4Mbps |
| Search | Time slice / time / event / tag search |
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events |
| Video format | H.264/H.265 |
| Audio format | G.711a/G.711u |
| Network protocols | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, NTP, SMTP |
| Device access | BNC and ONVIF |
| Client access | MAX 5 users |
| Management mode | LDU |
| Functions | Play, pause, FF, FB, digital zoom, etc. |
| Network port | One RJ45 100Mbps |
| USB port | 2 x USB 2.0 port (one on the front panel and one on the rear panel) |
| Audio input | 1 channel, RCA port |
| Audio output | 1 channel, RCA port (linear, 600Ω) |
| Operating temperature | -10°C to 50°C |
| Operating humidity | 10% to 90% |
| Power consumption | ≤ 5 W (excluding hard disk and PoE output) |
| Power supply | 12 V/1.5 A |
| Dimensions | 42 mm (H) x 255 mm (W) x 222 mm (D) |
| Shelf | 1 U |
| Certification | CE |
Documentation
-
Datasheet
