E1A

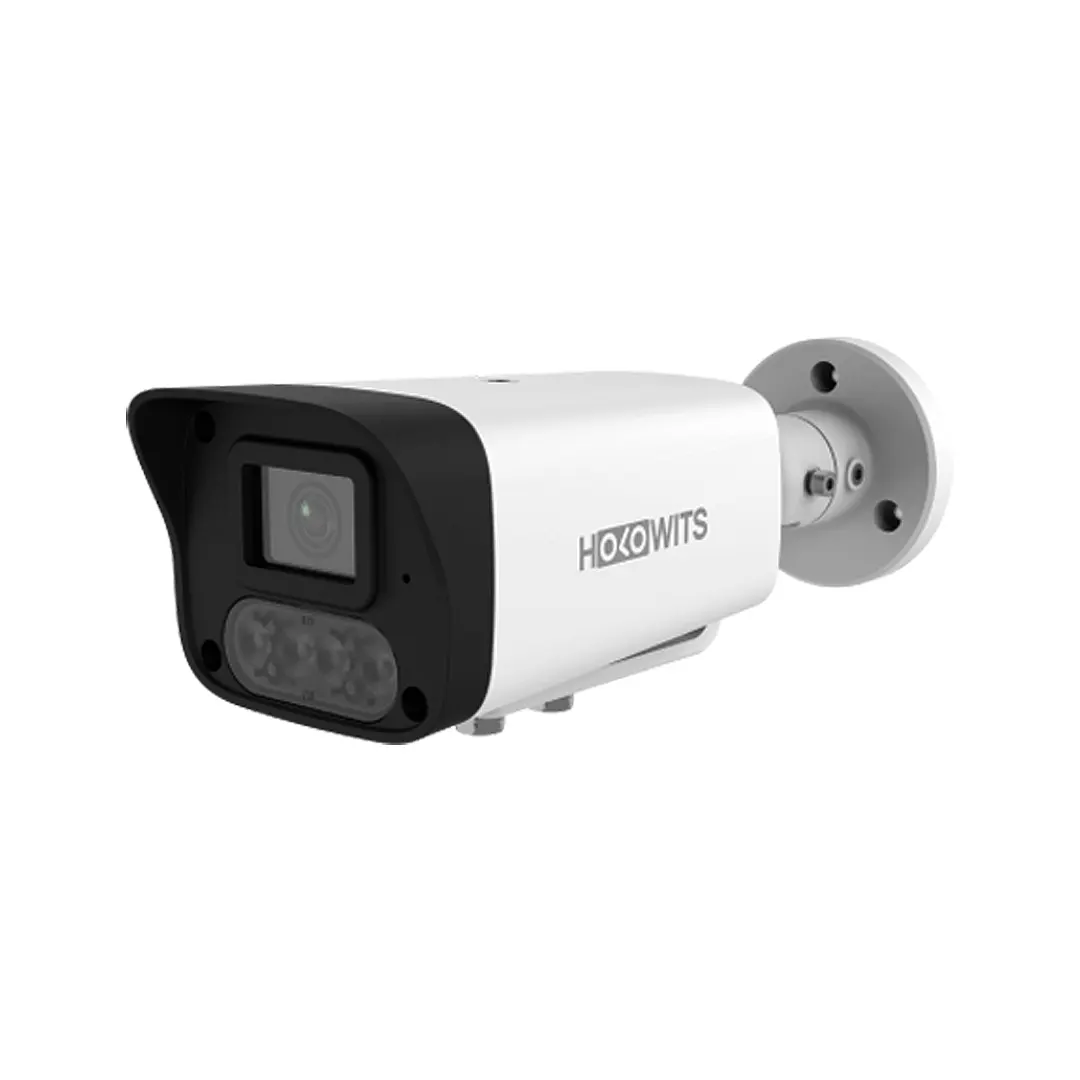

Holowits E1A-4LR (3.6) 4MP IR/White Light Bullet Camera Full HD

Specification:
  • Supports backlight adaptation and overcast adaptation
  • 1/3″ CMOS sensor
  • 120 dB super wide dynamic range (WDR), ensuring that both foreground and background objects are clearly identified in environments with sharp light contrast
  • H.265 or H.264 HD encoding at a low bit rate
  • 30 m IR range and 30 m white light range
  • Built-in microphone for sound pickup
  • Support for PoE
Kategori: Tag: Brand:

Deskripsi

E1A 4LR (3.6) 4MP IR/White Light Bullet Camera Full HD adalah kamera bullet 4 MP yang menghadirkan rekaman super jernih siang dan malam berkat kombinasi lampu inframerah & white light. Desain tahan cuaca (IP67) dan lensa 3.6 mm memastikan sudut pandang lebar, ideal untuk memantau area outdoor luas. Instalasi mudah, hasil full‑color di kondisi minim cahaya—solusi pintar untuk keamanan rumah atau bisnis Anda!

Technical Spec Holowits E1A-4LR (3.6)
Memory DDR3 0.128 GB
Flash type SPI NOR FLASH 16.0 MB
Focal length 3.6mm
Max Aperture F1.6
Image sensor 1/3″ CMOS/4MP 2560(H)*1440(V)
Lens aperture type Fixed iris
Angle of view Horizontal: 78°; vertical: 42°; error: ±5%
IR range 30m
Illumination distance 30m
IR Wavelength 850 nm
Event detection Motion detection, human figure detection and lens blocking detection
Data openness SDK (proprietary protocol)/REST API (proprietary protocol) /ONVIF Profile S/G/T
Video encoding format H.264/H.265
Video encoding channels Dual streams
Video frame rate 25 fps/20 fps (configurable)
Scene adaptation Backlight adaptation/Overcast adaptation
Min illumination Color: 0.005 lux (F1.2, AGC ON, 1/30s shutter speed); B/W: 0.0025lux(F1.2, AGC ON, 1/30s shutter speed) or 0 lux (infrared illuminator enabled)
Day/Night mode Day/Night mode: automatic, color, B/W, and scheduled (default: automatic) Sensitivity: 1–10 (default: 5) Nighttime start time: 18:00:00by default Daytime start time: 06:00:00 by default Filteringtime: 2sto 120s (default: 5s)
WDR 120db
White balance Auto/Manual/Automatic tracking/Global/Locked
HLC/BLC Supported/Supported
Storage port One microSD card slot that supports microSDHC/microSDXC (maximum memory card capacity: 256 GB)
Network port One RJ45 10M/100M adaptive Ethernet port
Audio port Supported (one-channel built-in microphone)
Power type DC12V,PoE(IEEE 802.3af)
Power consumption Maximum: 5.32 W; typical: 2 W
Operating temperature -30℃ to 60℃
Storage temperature -40℃ to 70℃
Operating humidity 5% to 95%(non-condensing)
